What Are Conductor Pulley Stringing Blocks?

What Are Conductor Pulley Stringing Blocks?

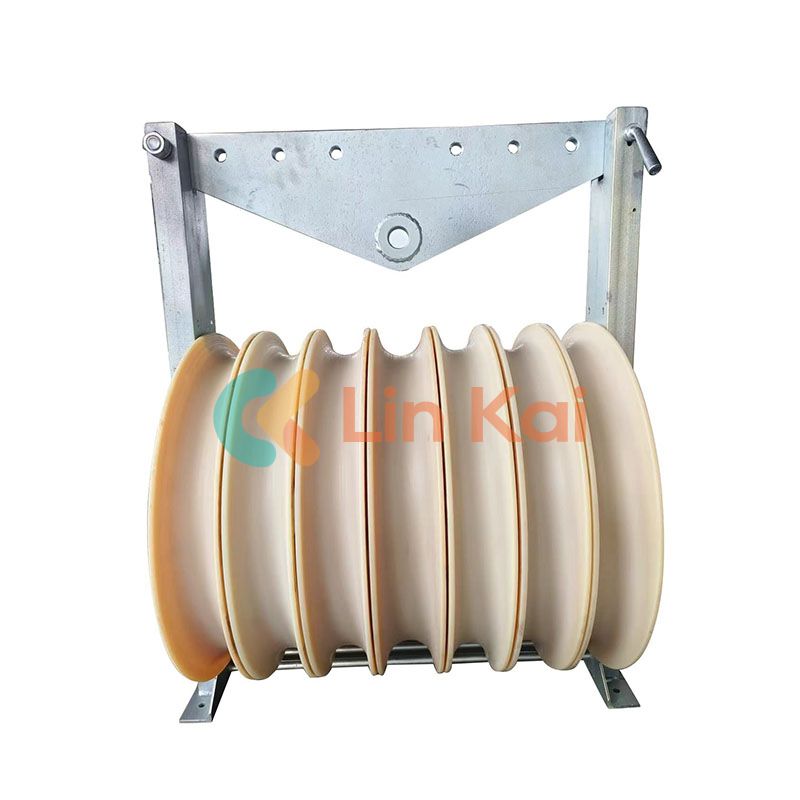

Conductor pulley stringing blocks are specialized pulleys designed to support and guide electrical conductors (wires) during overhead transmission line stringing. The assembly typically consists of a grooved wheel called a sheave and a supporting frame. The conductor passes through the sheave, which rotates freely to reduce friction and protect the conductor’s surface. The blocks are temporarily mounted on tower structures or temporary supports before pulling begins.

How Do Conductor Pulley Stringing Blocks Work?

During a stringing operation:

• A pilot rope or pulling line is first installed along the entire route.
• The conductor stringing block is placed at towers or angle points.
• The conductor is attached to the pulling rope and drawn through each sheave.
• The sheave’s rotation significantly lowers friction and prevents abrasion or damage to the conductor.

The grooved sheave ensures the conductor stays on track even when traversing uneven terrain or curves. The smooth motion also helps crews maintain proper tension and minimize installation delays.

Why Are Conductor Pulley Stringing Blocks Important?

There are several critical reasons why these blocks are indispensable in power line construction:

• Reduced Friction & Damage: The design minimizes rubbing and wear on conductors, preventing costly damage during installation.
• Proper Tension Management: They facilitate controlled tension, which is essential for consistent conductor sag and long-term reliability.
• Improved Safety: Pulling conductors manually without a block increases the risk of snapping and harming workers. Blocks reduce these risks.
• Efficient Long-Distance Stringing: For long spans or difficult terrain, blocks ensure that installation proceeds smoothly and without unnecessary stops.

Which Types of Conductor Pulley Stringing Blocks Exist?

Stringing blocks are categorized by the number of sheaves and special use cases:

How Do You Choose the Right Conductor Pulley Stringing Block?

When selecting an appropriate block, here are key criteria:

• Conductor Size & Type: Ensure the sheave diameter is at least 30–40 times the conductor diameter to minimize bending stress.
• Number of Conductors: Choose blocks with sheave count matching your line design — single for one conductor, multiple for bundled systems.
• Rated Load Capacity: The working load should exceed the maximum pulling tension by a safety margin.
• Frame & Material: Frames are typically galvanized steel and sheaves are high-strength aluminum or MC nylon with optional protective lining.

What Safety Considerations Matter?

• Proper Installation: Ensure secure anchoring on towers to avoid accidental dislodging during pulling.
• Regular Inspection: Check sheave and bearing conditions frequently to prevent failure mid-operation.
• Use Protective Equipment: Workers should wear PPE when handling high-tension conductors and tools.

Frequently Asked Questions

What is the primary purpose of a conductor pulley stringing block?
It guides and supports the conductor during overhead line installation while minimizing friction and mechanical damage.

How does sheave material affect performance?
Sheaves made of MC nylon or aluminum with linings reduce friction and minimize conductor wear.

Can one pulley block handle multiple conductors?
Yes — multi-sheave blocks are designed to handle two, three, or four conductors simultaneously.

Are conductor pulley stringing blocks only for power lines?
Primarily yes, but similar blocks can be used in telecom and other overhead cable installations.

What factors influence block selection?
Conductor size, tension load, environment, and route complexity all affect block choice.
